Objectives:
1. To know about the yarn to fabric path diagram of Tricot warp knitting machine.
2. To know about the name of the differents parts of the machine.
Main parts of the Machine:
1. Compound needle.
2. Needle bar
3. Guide bar
4. Sinker& sinker bar
5. Sliding latch
6. Sliding latch bar
7. Comb
8. Cloth roller.
9. Link
10. Rocker shaft
11. Pattern chain.
12. Pattern drum.
13. Main shaft.
14. Intermediate shaft.
15. Let-off mechanism
16. Take-up mechanism.
17. Machine A/C.
18. Toothed belt/ Timing belt.
19. Warp beam.
20. Bottom Beam.

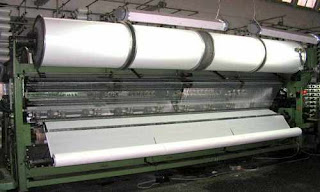

M/C specification:
- Brand: LIBA
- Origin: W. Germany
- Manufacturing Company: MASCHINEN FABRIK, NAILA.
- Manufacturing Year: 1991
- Width: 84 inch/ 213 cm
- Type: COP 2K
- Gauge: 28
Compound needle is used in the m/c. With the help of the pattern drum and the chain link the patterning is done. The gears are merged in oil bath for smooth operation. There are two back beam for yarn supply. The yarns come through guide bar and through the needle the cloth is take down by cloth roller
